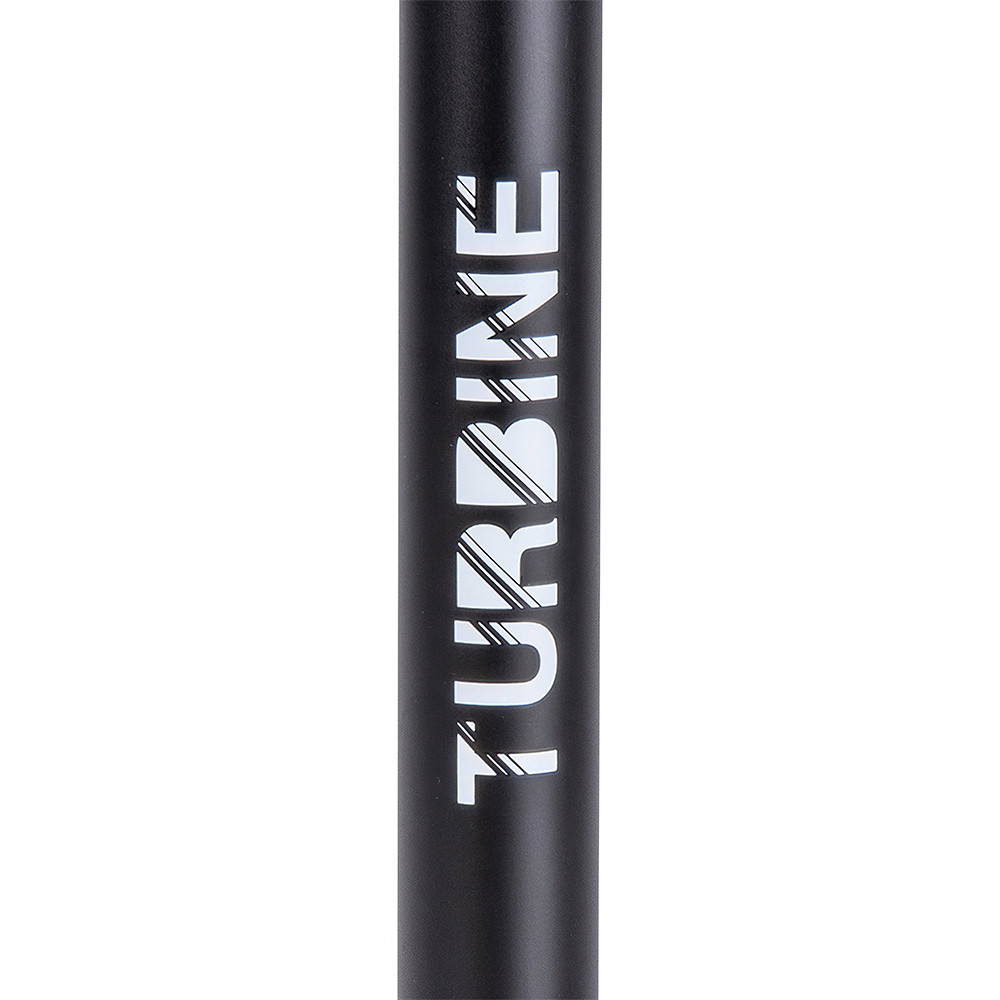

NKD turbine scooter bar is an oversized T-bar with Gussets, which is made of chromed steel. It is 54 cm (21.25 ") wide and 59 cm (23.25") high. The bar is compatible with the HIC compression system. In order to be able to use the SCS compression system, you must use an adapter, as the bar is designed with a column.
If you buy for more than $149 in our webshop you'll get free shipping. Orders $0 → $149 Shipping fee $9.95. Learn more.
Wish to return your purchase? Request an online return label here - as simple as that. You will find an estimated return fee for your product(s) when you go though the request process (return fee from $17).
We offer 365 days right of return! You can return your products in up to 1 year after you receive your package.
Questions? Visit our customer help center to quickly find an answer.
SCS adapter included | No |
---|---|
Bar shape | Y-Shaped |
Weight | 2.42 pounds |
Bar height | 590 mm |
Bar design | One-Piece |
Bar width | 540 mm |
Compatible with | HIC Compression |
Bar Inner diameter | 32 mm |
Material | Chrome-plated 4130 |
Outer diameter | 35 mm (Oversized) |
SCS ready | No |
SKU | 0102001049533-vconf |
Enable Qty Increments (B2B) | No |
Taxcode | 9503.0010.00 | Scooters |
When you're looking for a bar for your scooter, you should pay attention to which compression system the bar is compatible with. In addition, the bar's diameter should also match the fork and clamp on your scooter.
There are also many different sizes of scooter bars. Some prefer tall and narrow bars, while others prefer low and wide bars - but all of this is a matter of taste, to be assessed by the individual rider.
Most bars for stunt scooters are made of chromed steel, which is the strongest material. Other stunt scooter bars are made of aluminum, which is also a relatively strong material and does not weigh much.
Recommended bar height
Rider height | Bar height | Age |
4'2" - 4'6" | 19" - 21" | 7-9 Year |
4'6" - 5'12" | 21" - 23" | 10-13 Year |
5'12" - 5'6" | 22" - 26" | 12-15 Year |
5'6" - and up after | 26" | 14 Year and up after |
Compression systems
When it comes to scooter bars, it's important to understand compression systems to know which bar to use for which scooter. You can read about the three different compression systems below. On all scooters on our website, it will be stated which system is suitable for the specific scooter. For more info, check out our scooter bar guide here!
ICS (Inverted Compression System):
ICS is a compression system often used in trick scooters. It involves a compression bolt that extends through the centre of the handlebar and screws into a star nut installed inside the fork tube.
With ICS, the handlebar must have an incision (cut) in the bottom to allow the compression bolt to pass through and make contact with the star nut.
This system is known for its simplicity and efficiency, but requires handlebar grips specifically designed for ICS compatibility.
ISC (Internal Compression System):
ISC is another compression system used in trick scooters, similar to ICS but with a different compression method.
In ISC, the compression bolt passes through the top of the fork tube and screws into a star nut or compression cap installed inside the fork tube.
Handlebar grips for ISC compatibility typically do not require a cut as the compression bolt does not extend through the centre of the handlebar.
IHC (Integrated Headset Compression):
IHC is a compression system that integrates the compression mechanism with the headset bearings of the scooter.
With IHC, the compression bolt screws directly into the top of the fork tube, eliminating the need for a star nut or compression cap inside the fork tube.
Steering levers compatible with IHC do not require a cut as the compression bolt does not extend through the centre of the handlebar.
Each of these compression systems has its benefits and considerations, and the choice between them often comes down to personal preference, compatibility with the scooter's components and desired setup of the scooter. Riders should ensure compatibility between the handlebars and the compression system when assembling or upgrading their trick scooter.
SCS adapter included | No |
---|---|
Bar Inner diameter | 32 mm |
Bar shape | Y-Shaped |
Material | Chrome-plated 4130 |
Weight | 2.42 pounds |
Outer diameter | 35 mm (Oversized) |
Bar height | 590 mm |
SCS ready | No |
Bar design | One-Piece |
SKU | 0102001049533-vconf |
Bar width | 540 mm |
Taxcode | 9503.0010.00 | Scooters |
Compatible with | HIC Compression |
